Annotations

Managing and auditing large sets of permissions can be difficult. To address this challenge, we've introduced the ability to add permission annotations to roles. Annotations provide a way to group permissions and attach additional context, making it easier to understand and manage.

An annotation is defined by two fields:

• uri - An identifier specifying the subset of permissions to be annotated. A GET request to this URI is expected to return an array of permissions.
• schema - The URL of an OpenAPI v3 schema document describing the API, including the endpoint specified in uri.

Annotations, being an auxiliary concept, are not stored in the Roles contract. Instead, they are posted to the blockchain via Poster (opens in a new tab) to become accessible to the Roles subgraph.

Resolving Annotations

The Roles app resolves annotations by fetching the permissions to be annotated from the specified uri as well as the corresponding schema document.

If the permissions returned from the uri are a subset of the permissions granted to the role, the annotation will be applied, otherwise it will be ignored.

From the schema document, the Roles app extracts the Operation object (opens in a new tab) of the uri endpoint. This information guides the generic rendering of the annotated permission set in the app.

Example

The DeFi Kit (opens in a new tab) project curates permission sets for common interactions with different DeFi protocols. It uses annotations to indicate which permissions belong to a certain protocol action.

For example, a swap action of the cowswap protocol would be annotated as follows:

{
  "uri": "https://kit.karpatkey.com/api/v1/permissions/eth/cowswap/swap?sell=0x6B175474E89094C44Da98b954EedeAC495271d0F&buy=0xC02aaA39b223FE8D0A0e5C4F27eAD9083C756Cc2",
  "schema": "https://kit.karpatkey.com/api/v1/openapi.json"
}

The uri includes all parameters of the DeFi Kit action returns the resulting set of permissions:

https://kit.karpatkey.com/api/v1/permissions/eth/cowswap/swap?sell=0x6B175474E89094C44Da98b954EedeAC495271d0F&buy=0xC02aaA39b223FE8D0A0e5C4F27eAD9083C756Cc2 (opens in a new tab)

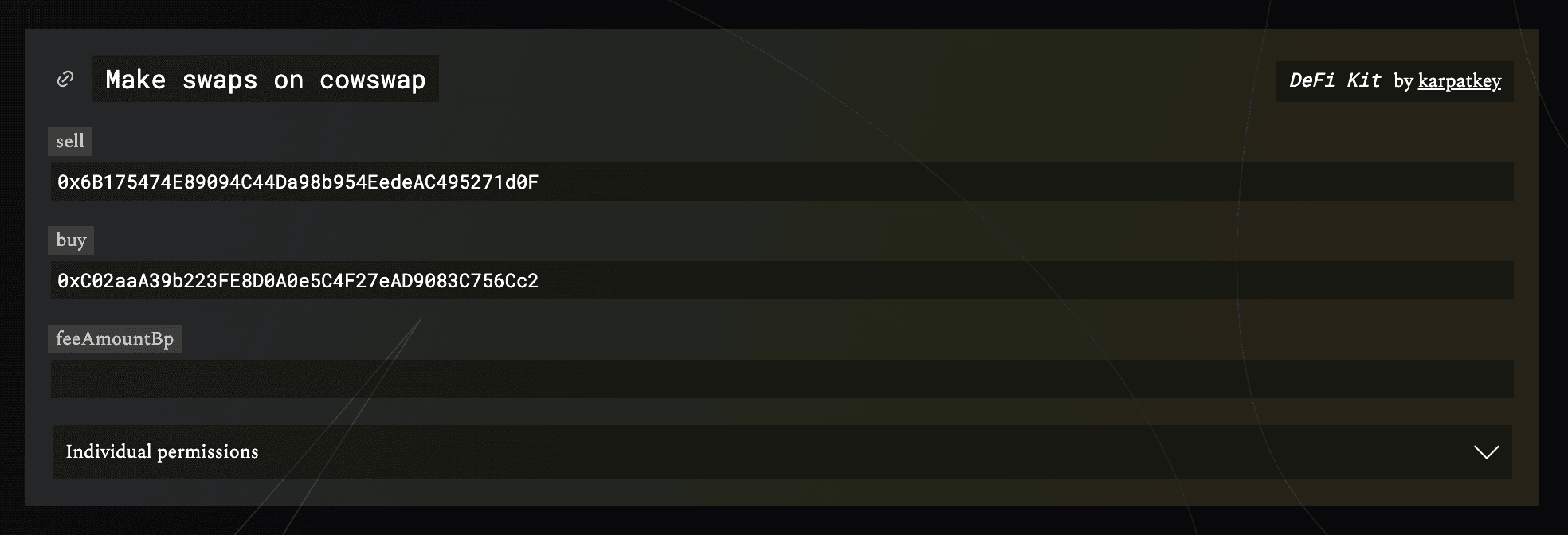

The schema information allows the Roles app to render the annotated permission set in an abstracted, user friendly way:

Live example: https://roles.gnosisguild.org/permissions/eth/QDvRwxK23piKZ1EdbZgrXP2MydB2tEa2JqWLHIzk (opens in a new tab)
